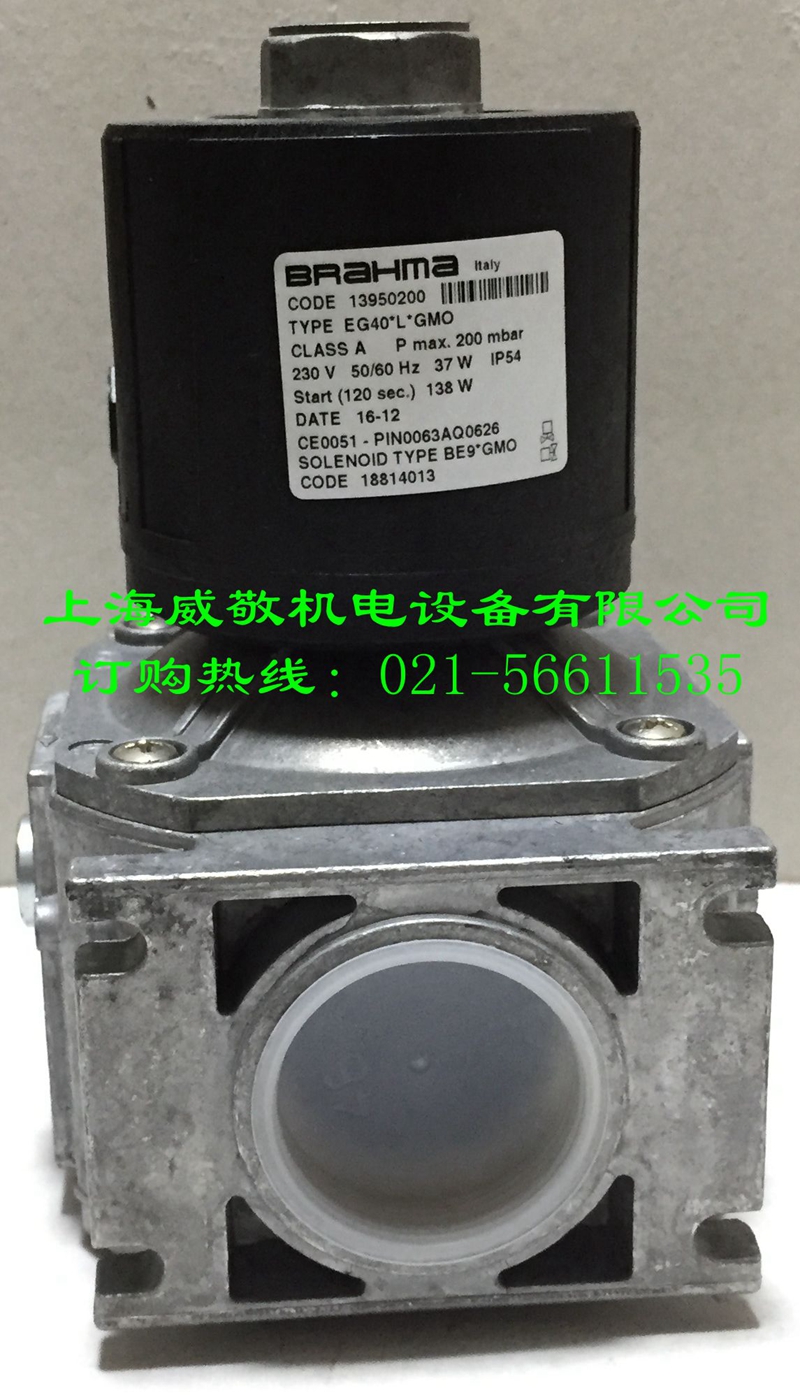

意大利BRAHMAEG40*L*GMO燃气电磁阀 慢开带流量调节1/2

意大利BRAHMAEG40*L*GMO燃气电磁阀 慢开带流量调节1/2"

  •
      EG40系列燃气电磁阀

      品牌:Brahma(布拉玛)



      产地:意大利


       产品介绍


      EG40*L*GMO燃气电磁阀为慢开快关、带流量调节,可做主电磁阀使用。口径为1-1/2"。接线方式为电磁阀自带接线盒,内部接线。



      This series of solenoid valves are of normally closed type, suitable for civil and industrial applications, supplied with alternate current.



      These devices are provided with a special rectifier circuit which supplies the valve coil with a high inrush power at starting (70W in fast opening version and 138W in slow opening version for about 120 seconds); then it reduces the power rating preventing the valve coil from overheating and keeping the gas valve in operating condition. This special circuit has enabled to achieved high operating pressure values using a small size valve coil.



      A wire-net filter on the inlet avoids the entrance of dirt of > 1mm.



      There is the possibility to have a fast opening or a slow opening valve (obtained by special hydraulic shock-absorber), with flow adjustment and fast opening initial flow adjustment. All versions can be connected with suitable fixing brackets, provided with by-pass solenoid valves and pressure plugs upstream and downstream.



      Gas valves of this series are in compliance with European standard EN161 and have the EC-type certificate (CE PIN 0063AQ0626) in accordance with the Gas Appliance Directive 90/396/EEC and the following amendment 93/68/EEC.


       型号表

      型号    运行压力(mbar)    口径    重量(g)    线圈型号    功率(VA)在230V    功率(VA)在110V    流量(m3/h)2.5mbar
      EG40*S    0...200    G1-1/2"    3485    BE9*GMOA    70    20    50
      EG40*SR    0...200    G1-1/2"    3505    BE9*GMOA    70    20    50
      EG40*L    0...200    G1-1/2"    3755    BE9*GMOA    138    37    50

       技术参数

      主电压    230V 50/60Hz
      110V 50/60Hz
      运行温度    -10?C...+60?C
      关闭时间    <1s
      打开时间    <1s
      安装位置    水平或垂直
      材料
      等级    A



       包装



      纸盒单只包装
