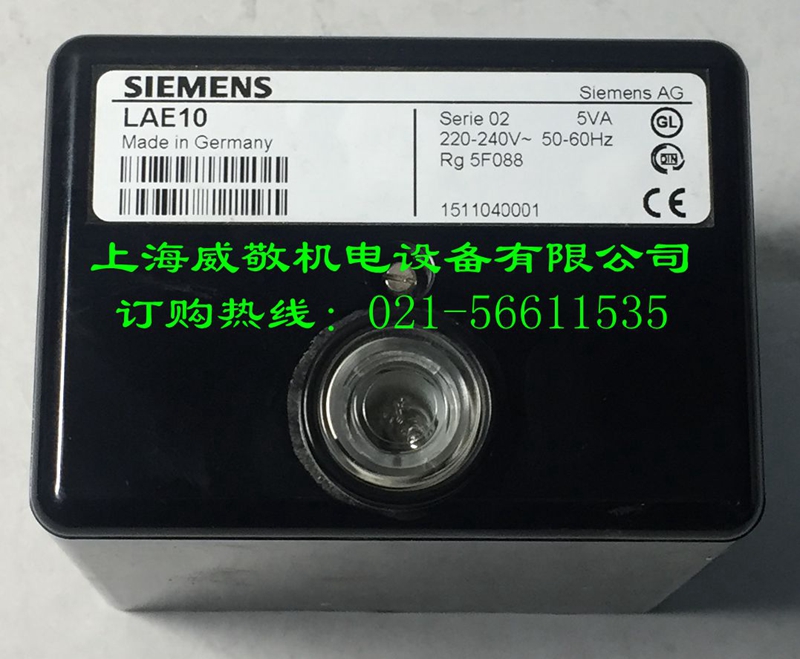

德国SIEMENS西门子LAE10 电眼火焰放大器

商品详情

LAE10系列火焰监测器

品牌：SIEMENS（西门子）

产地：德国

描述：

用于间歇运行燃烧器的火焰安全监测

输出类型：2个SPST

LAE10...配接RAR...火焰探测器监测燃油火焰(连接电缆长度Max.20m)

LFE10...配接QRA...或离子棒火焰探测器监测燃气火焰或蓝色燃油火焰(连接电缆长度Max.20m)

产品介绍

Flame safeguards for burners with intermittent operation. For safety reasons - self-test of flame supervision circuit, etc. - at least one controlled

Flame safeguards are used primarily in conjunction with the LEC1 burner control on the following applications:

Dual-supervision of burners: Supervision of the main flame or of the pilot and main flame by two identical or different types of flame detectors
Supervision of forced draught oil / gas burners: Supervision of the flame with different types of detectors, depending on the operating mode
Multi-flame supervision: Plants with several burners whose flames must be supervised individually by one or several detectors, whose startup and supervision, however, should or must be carried out centrally and simultaneously by only one burner control
The flame safeguards can also be used in connection with other types of burner controls provided the given combination and selected circuitry do not impair the burner control’s safety functions
The flame safeguards are also used as flame indication units in combustion plant with manual startup

shutdown is required every 24 hours. The LAE10 is designed for the supervision of oil flames in connection with selenium photocell detectors RAR...

技术参数

主要参数

主电压	AC220V -15%...AC240V +10%
主电压	AC100V -15%...AC1100V +10%
主频率	50...60Hz ±6%
外部保险丝	10A
功率	4.5VA
端口额定电流	2A
保护等级	IP40
重量（不含底座）	305g

环境条件

运输环境	IEC 60 721-3-2
内部条件	class 2K2
机械条件	class 2M2
温度范围	-20...+60ºC
湿度	<95%
运行环境	IEC 60 721-3-3
内部条件	class 3K5
机械条件	class 3M2
温度范围	-20...+60ºC
湿度	<95%
不得进水
